A tried and tested technology.
The 254nm wavelength UV-C produced by our high-powered Amalgam lamps (172w) will be effectively and rapidly absorbed by the pathogen’s RNA to lead to its destruction.
The quartz tube that protects the lamps also filters out wavelengths < 200 nm that could produce ozone.
Based on studies on adenoviruses, we were able to conclude that a dose between 20 to 30 mJ/cm² allows an efficient reduction of the Covid-19 coronavirus. Our UVmastercare devices have been developed to allow you to use them in complete safety thanks to a delayed ignition and 2 presence detectors integrated into the device.
Watch the solution in action
How to use the UVMasterCare solution?

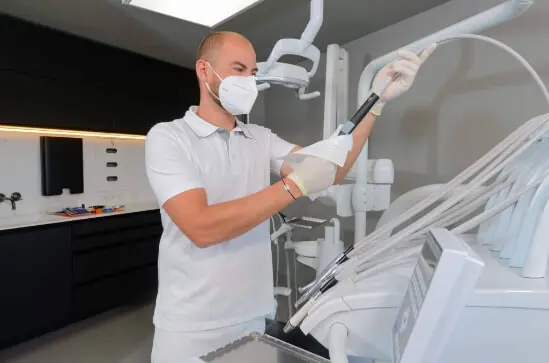

1. Routine disinfection
After the departure of your patient, you carry out the routine surface disinfection: seat, operating light, spittoon, and instrument block before completely clearing the work surfaces.

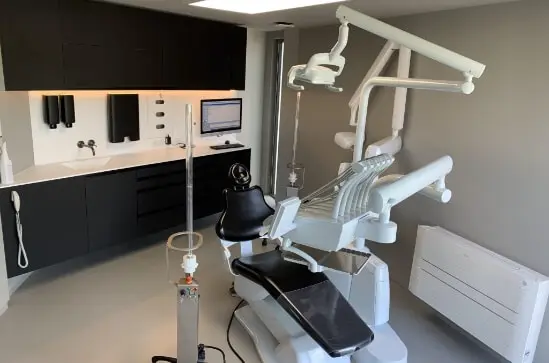

2. Positioning
You move the Master close to the chair and the Slave diagonally to the seat.

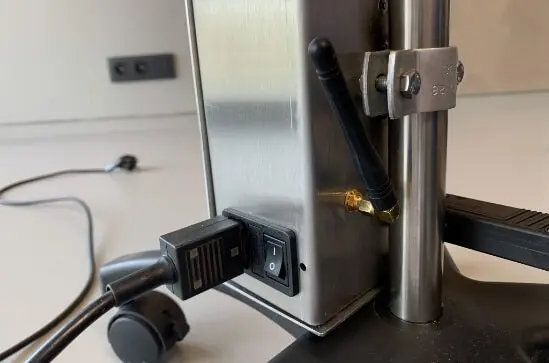

3. Connection
After connecting the Slave to the Master with the cable, you connect the Master to a conventional power outlet. Check that the devices are powered.

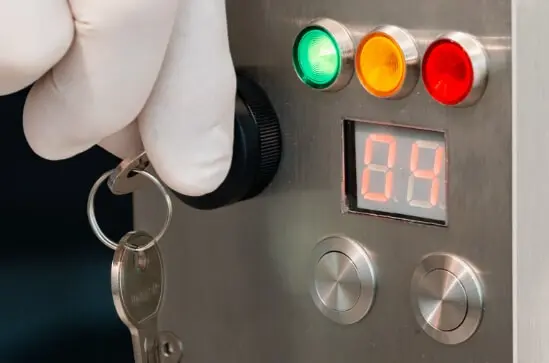

4. Ignition
You turn the ignition key to power the device (green light). If you are ready to leave the room, force the key to the right. The timer will start with a beep (one beep per second) and you have 20 seconds to leave the room.

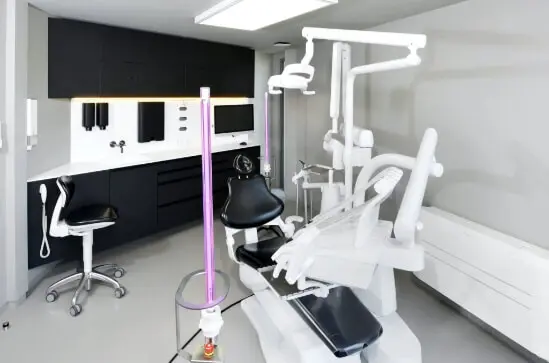

5. Switching on and disinfection
If the presence detectors do not detect any movement in the room, the UV lights will switched on successively. The disinfection is started for the programmed time. The motion detectors are activated. If an intrusion is detected, both devices are immediately switched off. You will then be notified via the app of the protocol interruption.
6. End of the operation
During the operation, you are informed of the progress of the disinfection phase through the application and by the continuous beeping sound emitted by the device throughout the entire process.
7. Journal
The application allows you to follow the progress of the disinfection in real time and to access several types of useful information for protocol management:
- Device identification
- Disinfection duration
- Remaining lamp life (%)
- Countdown timer
- Motion sensor sensitivity
Discover it in video
